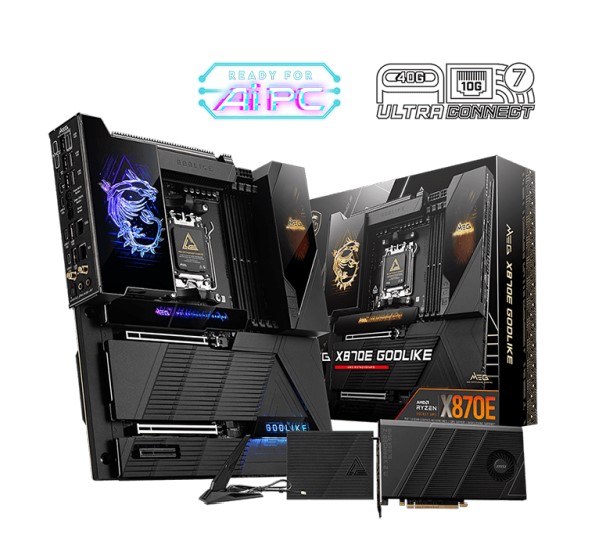

MSI MEG X870E GODLIKE AMD AM5 Series MOTHERBOARD

SPECIFICATIONS
Model Name MEG X870E GODLIKE
CPU Support Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop
Processors
CPU Socket AMD Socket AM5
Chipset AMD X870E Chipset
Expansion Slots 2x PCIe 5.0 x16 slots,
1x PCIe 4.0 x4 slot
Display Interface 2 x USB4 ports support USB Type-C display output,
– Requires Processor Graphics
Memory Support 4 DIMMs, Dual Channel DDR5 – 8400+MT/s (OC)
Storage 2 x M.2 Gen5 x4 128Gbps slots,
2 x M.2 Gen5 x4 128Gbps slots via M.2 card,
2 x M.2 Gen4 x4 64Gbps slots,
1 x M.2 Gen4 x2 32Gbps slot,
4 x SATA 6Gbps ports
USB ports 2 x USB 40Gbps (2 Type-C),
1 x USB 20Gbps (1 Type-C),
14 x USB 10Gbps (8 Type-A + 6 Type-C),
4 x USB 5Gbps (4 Type-A),
4 x USB 2.0
LAN 1 x Marvell®
AQC113CS 10Gbps LAN,
1 x Realtek®
5Gbps LAN
WIFI / BT Wi-Fi 7 Solution, Bluetooth 5.4
Audio 8-Channel (7.1) USB High Performance Audio with Audio
Boost 5 HD

FEATURES
Dynamic Dashboard III
A 3.99-inch LCD for real-time hardware monitoring,
troubleshooting, BIOS updates, and personalized display options,
enhancing the overall user experience.
EZ Link
By consolidating front panel, fan, and ARGB headers into the EZ
Bridge and EZ Control Hub, cable management is simplified,
resulting in an extremely clean build.
M.2 XPANDER-Z SLIDER GEN5
The one-slot-thick M.2 expansion card features dual high-speed
Gen5 M.2 slots, and the EZ Slide design makes SSD upgrades
effortless.
Ultra Power +
The ultimate power solution with 24+2+1 DRPS, 110A SPS, and
OC Engine unleashes maximum CPU performance.
Frozr Design
Wavy Fin Design, Direct Touch Cross Heat-pipe, Aluminum Cover,
Double-sided M.2 Shield Frozr, Metal Backplate and Frozr AI
software ensure the utmost performance with low temp.
Lightning USB 40G
Featuring a built-in USB 4 port, it offers a lightning-fast 40Gbps
transmission speed.
10G Super LAN + 5G LAN
Onboard 10G plus 5G LAN provide the next level network speed,
secure networking with the fastest data throughput to deliver the
best online gaming experience.
Wi-Fi 7
The latest wireless solution with a new 320MHz channel,
achieving a maximum transmission speed of 5.8Gbps, which is
2.4 times faster than Wi-Fi 6/6E.
EZ PCIe Release
A simple press of a button to effortlessly lock or unlock the PCIe
slot, simplifying the installation and removal of the graphics card.
EZ Magnetic M.2 Shield Frozr II
The patented design enables true “wire-less” RGB function, while
the screwless design provides the easiest way for M.2 installation.
Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for
maximum transfer speed.
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest
DDR5 memory and MSI Memory Boost technology.
