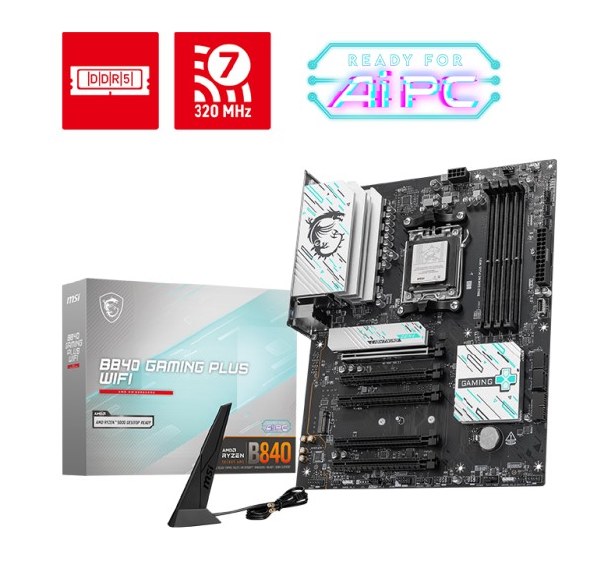

MSI B840 GAMING PLUS WIFI AM5 Motherboard

SPECIFICATIONS
Model Name B840 GAMING PLUS WIFI
CPU Support Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop
Processors
CPU Socket AMD Socket AM5
Chipset AMD B840 Chipset
Expansion slot 1 x PCIe 4.0 x16 slot,
1 x PCIe 3.0 x16 slot,
3 x PCIe 3.0 x1 slots
Display Interface Support 4K@60Hz as specified in HDMI™ 2.1,
– Requires Processor Graphics
Memory Support 4 DIMMs, Dual Channel DDR5 – 8000+ MT/s (OC)
Storage 2 x M.2 Gen4 x4 64Gbps slots,
4 x SATA 6Gbps ports
USB ports 2 x USB 10Gbps (1 Type-A + 1 Type-C),
5 x USB 5Gbps (4 Type-A + 1 Type-C),
8 x USB 2.0
LAN Realtek®
2.5Gbps LAN
WIFI / BT Wi-Fi 7 Solution, Bluetooth 5.4
Audio 8-Channel (7.1) HD Audio with Audio Boost

FEATURES
Wi-Fi 7
The latest wireless solution with a new 320MHz channel,
achieving a maximum transmission speed of 5.8Gbps, which is
2.4 times faster than Wi-Fi 6/6E.
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest
DDR5 memory and MSI Memory Boost technology.
Lightning Gen4 Solution
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s
bandwidth for maximum transfer speed.
Extended Heatsink Design
MSI extended PWM heatsink and enhanced circuit design ensures
even high-end processors to run in full speed.
EZ M.2 Shield Frozr II
The new tool-less design makes installing or removing your M.2
SSD and Shield Frozr much easier
EZ PCIe Clip II
Allows for easy removal of the graphics card by pressing the taillike lock with one finger, even in the cramped case spaces.
Pre-installed I/O Shielding
Better EMI protection and more convenience for installation
2.5G Network Solution
Featuring premium 2.5G LAN to deliver better network
experience.
Dual M.2 Connectors
Onboard dual M.2 connectors for the maximum storage
performance with Lightning Gen 4 solution.
Audio Boost
Reward your ears with studio grade sound quality for the most
immersive audio experience.
