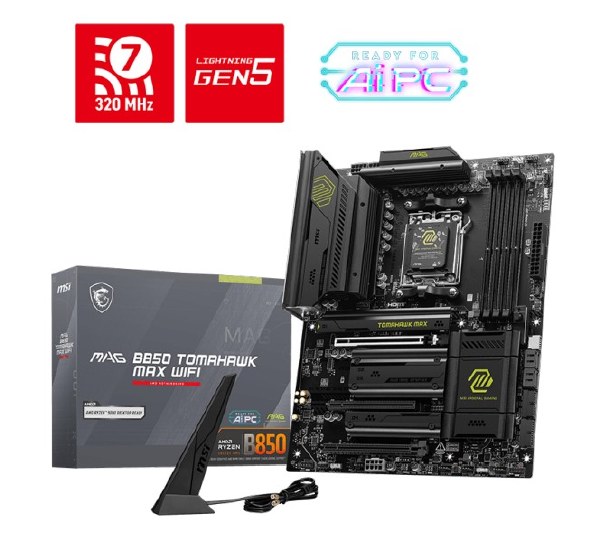

MSI MAG B850 TOMAHAWK MAX WIFI AM5 Motherboard

SPECIFICATIONS
Model Name MAG B850 TOMAHAWK MAX WIFI
CPU Support Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop
Processors
CPU Socket AMD Socket AM5
Chipset AMD B850 Chipset
Graphics
Interface
1x PCIe 5.0 x16 slot, 1x PCIe 4.0 x16 slot, 1x PCIe 3.0 x1 slot
Display Interface Support 8K@60Hz as specified in HDMI™ 2.1 FRL – Requires
Processor Graphics
Memory Support 4 DIMMs, Dual Channel DDR5-8400+ MT/s (OC)
Storage 2x M.2 Gen5 x4 128Gbps slots
1x M.2 Gen4 x4 64Gbps slot
1x M.2 Gen4 x2 32Gbps slot
4x SATA 6Gbps ports
USB ports 1x USB 20Gbps (1 Type-C)
5x USB 10Gbps (2 Type-A + 3 Type-C)
5x USB 5Gbps (5 Type-A)
8x USB 2.0
LAN Realtek®
5G LAN
Wireless /
Bluetooth
Wi-Fi 7 Solution, Bluetooth 5.4
Audio 8-Channel (7.1) HD Audio with Audio Boost 5

FEATURES
EZ PCIe Release
A simple press of a button to effortlessly lock or unlock the PCIe
slot, simplifying the installation and removal of the graphics card.
EZ M.2 Shield Frozr II
The new tool-less design makes installing or removing your M.2
SSD and Shield Frozr much easier
Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for
maximum transfer speed.
Quadruple M.2 Connectors
Onboard 4x M.2 connectors with one Lightning Gen 5 solution for
the maximum storage performance.
Extended Heatsink Design
MSI extended PWM heatsink and enhanced circuit design ensures
even high-end processors to run in full speed.
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest
DDR5 memory and MSI Memory Boost technology.
5G Network Solution
Featuring premium 5G LAN to deliver better network experience.
Wi-Fi 7
The latest wireless solution with a new 320MHz channel,
achieving a maximum transmission speed of 5.8Gbps, which is
2.4 times faster than Wi-Fi 6/6E.
Core Boost
With premium layout and fully digital power design to support
more cores and provide better performance.
Audio Boost 5
Isolated audio with a high quality audio processor for the most
immersive gaming experience
