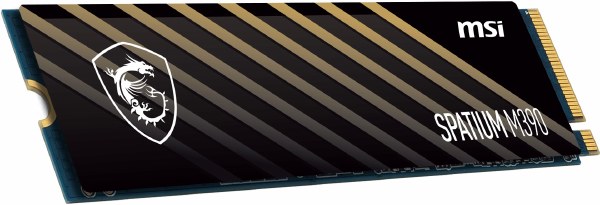

MSI SPATIUM M390 PCIe NVMe M.2 500GB

SPECIFICATIONS
Model Name SPATIUM M390 NVMe M.2
Capacity 250GB 500GB 1TB 2TB
Controller PHISON E15T
Flash Memory 3D NAND
Form Factor M.2 2280
Interface PCIe Gen3x4, NVMe 1.4
Compatibility PCIe Gen3 / Gen2 / Gen1
Dimensions 80.00mm (L) x 22.00mm (W) x 2.15mm (H)
Sequential Read up to (MB/s) 3300
Sequential Write up to (MB/s) 1200 2300 3000 3000
Random Read 4KB up to
(IOPS) 150K 300K 420K 420K
Random Write 4KB up to
(IOPS) 300K 550K 550K 550K
Maximum Operating Power
(W) 3.2 3.2 4.0 4.3
Idle Power PS3 (mW) 30
Low Power L1.2 (mW) 5
Operating Temperatures 0°C – 70°C
Storage Temperatures -40°C – 85°C
Terabytes Written (TBW) 150 200 400 1200
Mean Time Between Failure
(MTBF) Up to 1,500,000 Hours
Limited Warranty 5 Years, or the coverage for the maximum
TBW as stated, whichever comes first.
Advanced Features
TRIM (Performance Optimization, OS
support required)
SMART (Self-Monitoring, Analysis and
Reporting Technology)
LDPC (Low Density Parity Check) ECC
Algorithm
End to End Data Path Protection
APST (Autonomous Power State Transition)
AES256/TCG OPAL2.0/Pyrite (Encryption,
Data Security)

Blazing Speeds
Optimized for the PCIe Gen3 interface.
3D NAND Flash
3D NAND Flash technology brings dense storage in a compact
design and allows storage capacities up to 2TB.
Security & Reliability
Built-in data security and error-correction capabilities extend the
longevity of the NAND flash storage.
5 Years Warranty
MSI stands by the quality and reliability of their SSD’s with a 5
year limited warranty.
