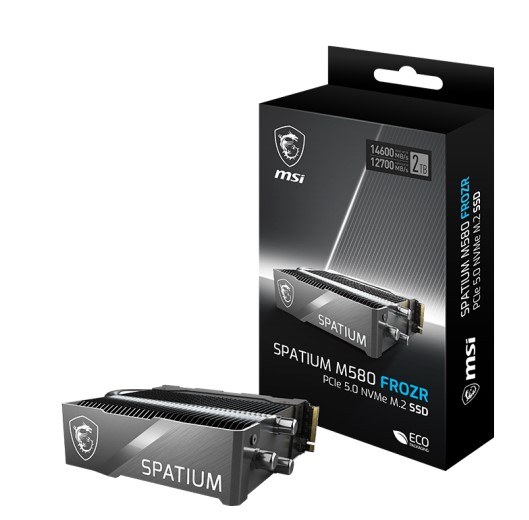

MSI SPATIUM M580 PCIe Gen5 NVMe M.2 2TB FROZR

SPECIFICATIONS
Model Name SPATIUM M580 PCIe 5.0 NVMe M.2 FROZR
Capacity 1TB 2TB 4TB
Controller PHISON E26
Flash Memory 3D NAND
DRAM Cache 2GB LPDDR4 4GB LPDDR4 8GB LPDDR4
Form Factor M.2 2280
Interface PCIe Gen5x4, NVMe 2.0
Compatibility PCIe Gen5 / Gen4 / Gen3 / Gen2 / Gen1
Dimensions 94.80mm (L) x 24.00mm (W) x 71.65mm (H)
Sequential Read up to (MB/s) 13,700 14,600 14,100
Sequential Write up to (MB/s) 10,300 12,700 12,600
Maximum Operating Power
(W) 11.5
Idle Power PS3 (mW) 144
Low Power L1.2 (mW) 85
Operating Temperatures 0°C – 70°C
Storage Temperatures -40°C – 85°C
Terabytes Written (TBW) 700 1400 3000
Mean Time Between Failure
(MTBF) Up to 1,600,000 Hours
Limited Warranty 5 Years, or the coverage for the maximum
TBW as stated, whichever comes first.
Advanced Features
TRIM (Performance Optimization, OS Support
required)
SMART (Self-Monitoring, Analysis and
Reporting Technology)
LDPC (Low Density Parity Check) ECC
Algorithm
End to End Data Path Protection
APST (Autonomous Power State Transition)
AES256/OPAL 2.0 (Encryption, Data Security)

FEATURES
Supercharged with Gen 5
The PCIe Gen 5 controller empowers next-level storage transfer
rates faster than previous-gen SSDs by up to 2 times.
Towered FROZR Heatsink
An enthusiast heatsink with well-pathed Core Pipes silently
reduces temperatures by up to 20 ? under a stylish cover,
sustaining maximum storage performance.
Core Pipe
Precision-machined heatpipes ensure max contact and spread
heat along the full length of the heatsink.
3D NAND
3D NAND flash technology brings dense storage in a compact
design and allows storage capacities up to 4TB.
Security & Reliability
Built-in data security and error-correction capabilities extend the
longevity of the NAND flash storage.
Low Latency Gaming
Enjoy minimal latency in smooth gameplay and loading games
with optimized high-performance bandwidth and throughput.
Nonstop Creativity Booster
Keep up nonstop productivity by opening up images, movies,
documents, and heavy-duty applications at lightning speeds.
MSI Center
Migrate data with backup & restore functionality, monitor drive
health and performance metrics in real-time in MSI Center.
Optimal M.2 SSD
Designed in the M.2 2280 form factor, MSI SSDs are easy to install
into desktops.
5 Years Warranty
MSI stands by the quality and reliability of their SSD’s with a 5
year limited warranty.
