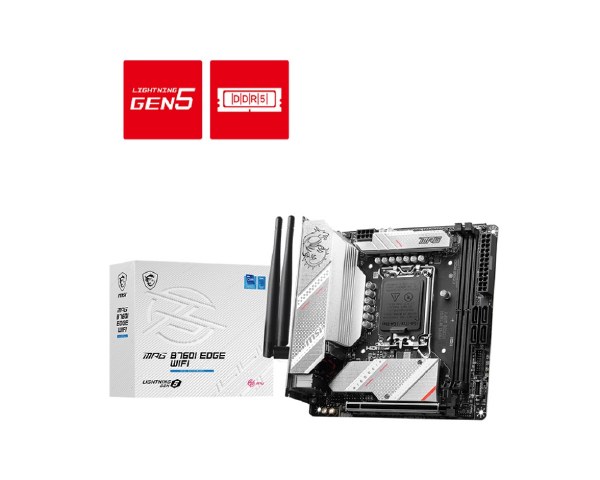

MSI MPG B760I EDGE WIFI DDR5 INTEL 13TH GEN MOTHERBOARD

SPECIFICATIONS
Model Name MPG B760I EDGE WIFI
CPU Support Supports 12th / 13th Gen Intel®
Core™ Processors, Pentium®
Gold and Celeron® Processors
CPU Socket LGA 1700
Chipset Intel®
B760 Chipset
Expansion Slots 1x PCIe 5.0 x16 slot
Display Interface Support 4K@60Hz as specified in HDMI™ 2.1, DisplayPort
1.4 – Requires Processor Graphics
Memory Support 2 DIMMs, Dual Channel DDR5-7200+ (OC)
Storage 2x M.2 Gen4 x4 64Gbps slots
4x SATA 6Gb/s ports
USB ports 3x USB 3.2 Gen 2 10Gbps (1 Type-A + 2 Type C)
6x USB 3.2 Gen 1 5Gbps (6 Type-A)
4x USB 2.0 (Type-A)
LAN Realtek®
2.5Gbps LAN
Wireless / BT Intel®
Wi-Fi 6E, Bluetooth 5.3
Audio 8-Channel (7.1) HD Audio with Audio Boost

Duo M.2 Connectors
Onboard Duo M.2 connectors with dual PCIe 4.0 solution,
strengthened by M.2 Shield Frozr.
Direct 8+1+1 phases with 90A SPS
Extreme direct power solution with 8+1+1 phases and 90A Smart
Power Stage unleash the maximum CPU performance.
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest
DDR5 memory and MSI Memory Boost technology.
Core Boost
Premium layout and optimized power design ensure better
performance.
Memory Boost
Advanced technology to deliver pure data signals for the best
performance, stability and compatibility.
Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for
maximum transfer speed.
Wi-Fi 6E
The latest wireless solution supports 6GHz spectrum, MU-MIMO
and BSS color technology, delivering speeds up to 2400Mbps.
2.5G Network Solution
Featuring premium 2.5G LAN to deliver better network
experience.
Audio Boost
Reward your ears with studio grade sound quality for the most
immersive audio experience
