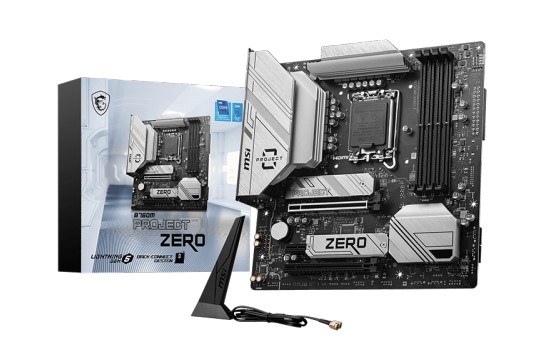

MSI B760M PROJECT ZERO INTEL MOTHERBOARD

MSI B760M PROJECT ZERO INTEL MOTHERBOARD

CPU Support Support Intel®
Core™ 14th/ 13th/ 12th Gen Processors, Intel®
Pentium®
Gold and Celeron®
Processors
CPU Socket LGA 1700
Chipset Intel®
B760 Chipset
Expansion Slots 1x PCIe 5.0 x16 slot
1x PCIe 4.0 x16 slot
1x PCie 3.0 x1 slot
Display Interface Support 4K@60Hz as specified in HDMI™ 2.1, DisplayPort
1.4
– Requires Processor Graphics
Memory Support 4 DIMMs, Dual Channel DDR5-7800+ (OC)
Storage 2x M.2 Gen4 x4 64Gbps slots, 4x SATA 6Gbps ports
USB ports 1x USB 3.2 Gen 2×2 20Gbps (Type-C)
4x USB 3.2 Gen 2 10Gbps (3 Type-A + 1 Type-C)
2x USB 3.2 Gen 1 5Gbps (Type-A)
8x USB 2.0
LAN Realtek®
2.5Gbps LAN
Wireless /
Bluetooth
Intel®
Wi-Fi 6E, Bluetooth 5.3
Audio 8-Channel (7.1) HD Audio with Audio Boost
