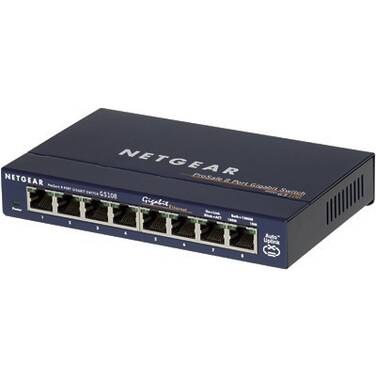

NETGEAR PROSAFE GS108 GIGABIT 8 PORT AUTO SENSING SWITCH – METAL

Network Ports

8 auto-sensing UTP ports
Forwarding Mode

Store-and-forward
192 KB on-chip packet buffering
Performance

Bandwidth:
16 Gbps (non-blocking)
Forward rate
– 10 Mbps port: 14,800 packets/sec
– 100 Mbps port: 148,000 packets/sec
– 1000 Mbps port: 1,480,000 packets/sec
Latency (using 1500-byte packets):
– 10 Mbps: 30µs (max)
– 100 Mbps: 6µs (max)
– 1000 Mbps: 4µs (max)
MAC address database: 4,000
Mean time between failures (MTBF): >1 million hours (~114 years)
Status LEDs

System power
Link, speed, and activity indicators per port built into each RJ-45 port
AC Power

Power adapter: 12W, 12V DC, 1A
Maximum power consumption:
– 4.92 W (if cable length > 10m)
– 4.08 W (if cable length < 10m)
Physical Specifications

Dimensions (w x d x h):
158 x 105 x 27 mm (6.2 x 4.1 x 1.1 in)
Weight: 0.522 kg (1.15 lb)
Environmental Specifications

Operating temperature: 0º to 50º C (32º to 122º F)
Operating humidity: 10% to 90% non-condensing
Storage temperature: -20º to 70° C (-4º to 158º F)
Storage humidity: 10% to 95% relative humidity
Standards Compliance

IEEE 802.3i 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
Honors IEEE 802.1p and DSCP priority tags
Jumbo frame: up to 9,720 bytes
Safety Agency Approvals

C-Tick, CE Mark
Electromagnetic Compliance

FCC Class B, VCCI class B, CE Class B
Warranty

Switch: NETGEAR Lifetime Warranty††
Power adapter: NETGEAR 2-year warranty
ProSupport Service Packs Available

OnCall 24×7, Category 1

PMB0331-100 (US)
PMB0331 (non-US)
XPressHW, Category 1

PRR0331
Package Contents

ProSafe 5-port or 8-port Gigabit Desktop Switch 10/100/1000 Mbps (GS105v3 or GS108v3)
Wall-mount kit
AC adapter
Installation guide
Warranty/support information card
