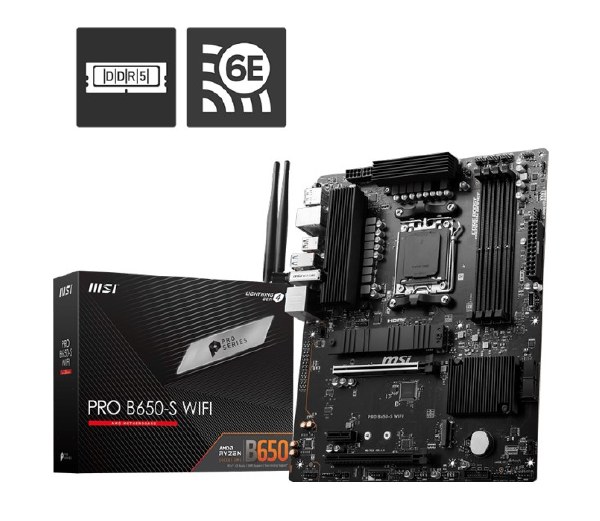

MSI PRO B650-S WIFI AMD Ryzen AM5 Motherboard

SPECIFICATIONS
Model Name PRO B650-S WIFI
CPU Support Supports AMD RyzenTM 8000 / 7000 Series Desktop
Processors
CPU Socket AMD Socket AM5
Chipset AMD B650 Chipset
Expansion Slots 2x PCIe 4.0 x16 slots
1x PCIe 3.0 x1 slot
Display Interface Support 4K@60Hz as specified in HDMITM 2.1, DisplayPort 1.4
– Requires Processor Graphics
Memory Support 4 DIMMs, Dual Channel DDR5-7200+MHz(OC)
Storage 2x M.2 Gen4 x4 64Gbps slots
4x SATA 6Gbps ports
USB ports 1x USB 3.2 Gen 2×2 20G (1 Type-C)
4x USB 3.2 Gen 2 10Gbps (3 Type-A + 1 Type-C)
6x USB 3.2 Gen 1 5Gbps (6 Type-A)
4x USB 2.0
LAN Realtek®
8125BG 2.5G LAN
Wireless /
Bluetooth
AMD®
Wi-Fi 6E, Bluetooth 5.3
Audio 8-Channel (7.1) HD Audio with Audio Boost

Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest
DDR5 memory and MSI Memory Boost technology.
Lightning Gen4 Solution
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s
bandwidth for maximum transfer speed.
Wi-Fi 6E
The latest wireless solution supports 6GHz spectrum, MU-MIMO
and BSS color technology, delivering speeds up to 2400Mbps.
2.5G Network Solution
Featuring premium 2.5G LAN to deliver better network
experience.
Frozr AI Cooling
Detect CPU & GPU temperatures and automatically adjust system
fan duty to a proper value.
EZ Debug LED
Easiest way to troubleshoot.
Memory Boost
Advanced technology to deliver pure data signals for the best
performance, stability and compatibility.
Core Boost
With premium layout and fully digital power design to support
more cores and provide better performance.
