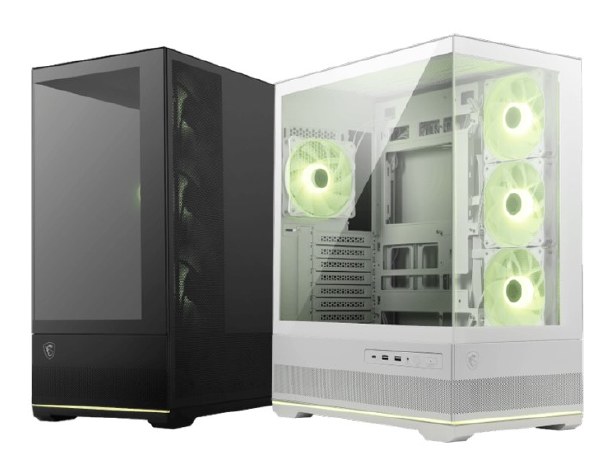

MSI MAG PANO 110R CASE

SPECIFICATIONS
Product Name MAG PANO 110R PZ / WHITE
Case Form Factor Mid-Tower
Motherboard Form Factor Support
Regular:
ATX / Micro-ATX / Mini-ITX
Back-connect:
ATX / Micro-ATX
I/O Ports
1 x USB 20Gbs (Type-C)
2 x USB 5Gbs (Type-A)
1 x Audio-Out / Mic-in
1 x LED Button
1 x Power Button
Drive Mount Support
2 x 2.5“
2 x 3.5“
2 x 2.5″/3.5″ combo
Expansion Slots 7
Maximum GPU Length 400 mm / 15.75 inches
Maximum CPU Cooler Height 160 mm / 6.30 inches
Power Supply Support ATX
Maximum PSU Length 200 mm / 7.87 inches
Fan Size Support
Top: 3 x 120 mm / 2 x 140 mm
Front: NA
Rear: 1 x 120 mm
Side: 3 x 120 mm / 2 x 140 mm
Bottom: 3 x 120 mm (Above the power
shroud)
Pre-installed Fan Size Side: 3 x 120 mm
Rear: 1 x 120 mm
Pre-installed Fan Type
Side: 3 x ARGB Fan (Reverse Blades
Fan)
Rear: 1 x ARGB Fan
Radiator Size Support
Top: 120 / 140 / 240 / 280 / 360 mm
Front: NA
Rear: 120 mm
Side: NA
Bottom: NA
Dimensions (DxWxH) 420 x 225 x 485 mm / 16.54 x 8.86 x
19.09 inches
